video balun kopen วีดีโอบาลัน (BNC to RJ-45 Video Balun)

หน้าแรก » คอมพิวเตอร์ และ IT » คอมพิวเตอร์ และ IT อื่นๆ

video balun kopen วีดีโอบาลัน (BNC to RJ-45 Video Balun)




ราคา 100 บาท/คู่
ยอดสั่งซื้อขั้นต่ำ 100 คู่

รายละเอียดสินค้า

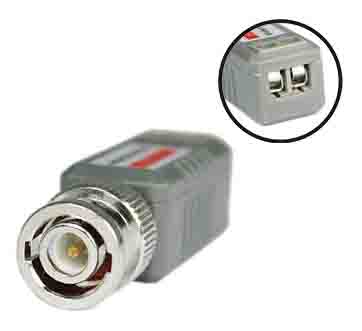

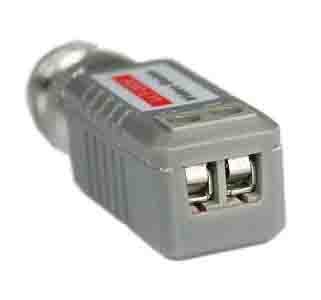

UTP Video Balun เป็นคู่
1 Channel Passive Video 400-600 เมตร (1 ชุด มี 2 ชิ้น / ตัวส่งและตัวรับ)


  ข้อมูลทางเทคนิค
• ติดตั้งกล้องโดยใช้สาย UTP CAT5,CAT6 แทนสาย RG
• ลดค่าใช้จ่ายในการต้องซื้อสาย RG
• สามารถเชื่อมต่อได้ไกลถึง 600 เมตร
• สัญญาณภาพสีได้ 400 เมตร ขาว-ดำ ได้ 600 เมตร
• ป้องกันสัญญาณรบกวนจากภายนอกได้อย่างดี
• ชุด Video Balun สามารถต่อเข้ากล้องวงจรปิด และ DVR ได้เลย
ไม่ต้องต่อไฟเลี้ยงที่ชุด Video Balun

Specification :
The TRANSVIDEO Model TT213 Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.
An improvement over TRANSVIDEO‘s popular TT131 video transceiver, the passive TT213features a Screwless UTP terminal block and Male BNC allowing connection directly to the camera or DVR. It is capable of delivering a fully equalized signal to the DVR .
When it used with video transmitter passive (non-amplified), It can applications under 250M. When used with any Active TRANSVIDEO Receiver, It can transmetted up 1KM.
The TT213 Video Transceiver also incorporates improved transient protection that eliminates the need for a ground screw.
The unparalleled interference rejection and low emissions of the TT213 allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant.

Product advantages :
1. Far distance and high quality transmission. By using the advanced video processing technology、amplifying and compensating the video signals amplitude and the attenuation of different frequencies, it has maintained the original image’s brightness and color. It has also achieved the good and long-range transmission of video signals.
2. Easy wiring and high utilization rate of cables. A normal UTP cable, with 4 twisted pairs, can transmit 4 video signals simultaneously, or 3 channel video, 1 channel control the signal. Laying UTP cable is easier than laying the coaxial cable.
3. Using UTP cable instead of 75 ohm coaxial cable as a video signal transmission to ensure the quality and enhance the clarity of the image. Excellent capacity of the control of interference、surge and lightning protection. Improve the cables, utilization and reduce the cost of the project.

• Male BNC allows connection directly to the camera or DVR
• Screw fix UTP terminal connection
• No power required
• Exceptional interference rejection
• Frequency Response DC to 10 MHz
• Input image formats: NTSC / PAL / CCIR / SECAM
• Built-in transient protection
• Used Cable: a pair of UTP Cat5,5e, or Cat6

Technical Specifications:
Frequency DC-5MHz
Adjustable balance brightness and color control
Common mode / differential mode suppression 15KHz-5MHz 60dB typical
BNC coaxial cable 75Ω
UTP terminal 100Ω
Wire size 24AWG or larger
Category Cat-3,4,5 or higher
Impedance 100Ω (± 20%)
DC loop resistance 18Ω/100 m
Differential capacitance 60pf / m
Work environment:
Operating temperature 0-50 ℃
Humidity 0-95%
Ability of anti-transient 60000V 1.2μS × μS
Warranty:One year limited warranty
