ตัวแทนจำหน่าย เกียร์ Rossi Worm gear Helical gear และGear reducer

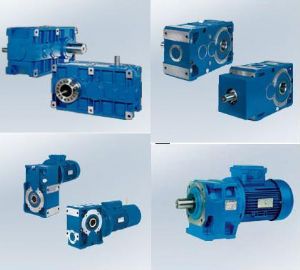

Worm gearmotors

14 Sizes (32 ... 250)
Power P1 0,09 ... 55 kW
Nominal torque
MN2 ≤ 1 900 daN m
Transmission ratio iN 7,1 ... 16 000
Universal mounting design
Rigid and precise monolithic casing in cast iron
Cylindrical worm shaft with ground and superfinished involute profile (ZI)
Load capacity and efficiency to BS 721-83 integrated with ISO/CD 14521
Forced ventilation
IEC standard motor
Wide range of accessories and non-standard designs
Easy and functional shaft-mounting design
Worm wheels of A04 gear reducers and gearmotors made of nickel bronze with controlled phosphor content, in order to achieve improved performance from 6 to 18%, a higher load capacity, greater reliability and more wear resistance
Compliance with ATEX 94/9/EC directive (UT.D 123)
----------------------------------------------------------------------------------------------------------------------- Coaxial gearmotors

16 Sizes (32 ... 180)
Power P1 0,09 ... 75 kW
Nominal torque
MN2 ≤ 1 000 daN m
Transmission ratio iN 4 ... 6 300

Universal mounting design
Strong patented casing
Wide size range
Rigid and precise cast iron monolithic casing
IEC standard motor
Pinion of final stage with three bearings
Compliance with ATEX 94/9/EC directive (UT.D 123)
-----------------------------------------------------------------------------------------------------------------------
Parallel and right angle shaft gearmotors

18 Sizes (40 ... 360)
Power P1 0,09 ... 160 kW
Nominal torque MN2 ≤ 7 100 daN m
Transmission ratio iN 6,3 ... 12 500

Universal mounting design
IEC standard motor
Rigid and precise cast iron monolithic casing
Wide range of accessories and non-standard designs
Easy and functional shaft-mounting design
----------------------------------------------------------------------------------------------------------------------
Planetary gearmotors


16 Sizes (200 ... 696)
Power P1 0,25 ... 55 kW
Nominal torque MN2 ≤ 20 000 daN m
Transmission ratio iN 10 ... 3 000

2, 3 or 4 reduction stages for both coaxial and right angle shaft
Motor standardized to IEC
Nodular cast iron casing with thick walls and stiffening ribs;
Wide range of accessories and non-standard designs
Easy and functional shaft-mounting design
----------------------------------------------------------------------------------------------------------------------
Parallel and right angle shaft gear reducers
(MN2 ≤ 7 100 daN m)

17 Sizes (50 ... 360)
Nominal power PN2 0,212 ÷ 2 700 kW
Nominal torque MN2 ≤ 7 100 daN m
Transmission ratio iN 2,5 ... 12 500
-----------------------------------------------------------------------------------------------------------------------
Parallel and right angle shaft gear reducers
(MN2 90 ... 400 kN m)

10 Sizes (400 ... 631)
Nominal power PN2 16 ÷ 3 650 kW
Nominal torque MN2 90 ... 400 kN m
Transmission ratio iN 8 ... 315

Large size gear reducers produced in series specifically conceived for granting highest reliability in heaviest application conditions.
Universal mounting design
----------------------------------------------------------------------------------------------------------------------

สนใจ ติดต่อสอบถามได้ที่ บริษัท เค้นท์ฟอร์ดแมชินเนอรี่ จำกัด
โทร. 02-2913181-7 แฟกซ์ 02-2913179
อิสรพันธุ์ ใจกว้าง โทร. 081-4067262 วิศวกรขาย
