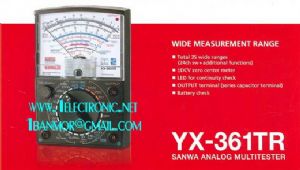

Sanwa Multimeter YX-361TR แท้ ราคาพิเศษสุด บริการใบเสนอราคา

รายละเอียด:

เที่ยงตรง - แม่นยำ - ทนทาน เหมาะสำหรับช่างมืออาชีพ Analog Multitester YX-361TR -------------------------------------------------------------------------------- General Information -------------------------------------------------------------------------------- ■ Battery check range ■ Cont. check with LEDs ■ OUTPUT terminals (series capacitor terminals) ■ ±DCV Zero-center meter -------------------------------------------------------------------------------- Standard Accessories Included -------------------------------------------------------------------------------- ■ Test Lead (TL-61) x 1set



ANALOG MULTITESTER
YX-361TR

INTRODUCTION :


Battery check range
Cont. check with LEDs
OUTPUT terminals (series capacitor terminals)
±DCV Zero-center meter



STANDARD ACCESSORY :

1. Test Lead (TL-61) x 1set


OPTIONAL ACCESSORY :
1. HV-10 (High voltage probe)
2. C-YS (Carrying case)



MEASUREMENT SPECIFICATION :
Range Accuracy Remarks
DCV
100m / 500m / 2.5 / 10 / 50 / 250 / 1000V
25kV (25kV by use of optional probe "HV-10") 2.5% of full scale
(1000V or below)
Input impedance 20kΩ
DCV (NULL)
±5 / ±25V ±5% full scale
Zero centering method
Input impedance 40kΩ
ACV
2.5 / 10 /50 / 250 / 1000V
40Hz ~ 30kHz ±3%
30Hz ~ 100kHz ±1dB
(10V or below) ±3% of full scale
(Below 10V range ±4%)
Input impedance 9kΩ
DCA
50µ / 2.5m / 25m / 0.25A
(50µA range is common with DC 100mV
range) ±2.5% of full scale
Terminal voltage drop : 250mV
Ω
2k / 20k / 200k / 2M / 20MΩ
Continuity indicating LED : x 1 range
(Emitting light at 10Ω or less) ±3% of scale length
1.5V (SUM3) x 2
9V (006P) x 1
dB
-10dB...+10dB (in AC2.5V range)...+62dB
0dB=0.775V (1mΩ)
600Ω impedance circuit ±3% of full scale
(Below 10V
range ±4%)
Input impedance 9kΩ
BATT (Battery Check)
0 ~ 1.5V ±5% of scale length
Load current : 0.25A
Li
0 ~ 150µA...x 1kΩ range ±5% of scale length
Current flowing across terminals
while object is measured.
0 ~ 1.5A... x 100Ω range
0 ~ 15mA... x 10Ω range
0 ~ 150mA... x 1Ω range
Lv (Terminal to Terminal Voltage)
Common to each Ω range 3V...0V
(Reverse of LI scale) ±5% of scale length
Voltage applied across terminals
while Ω is measured.
FET and Semiconductor test
Judges quality of each model of FETs, SCR,
Triac etc. with LI and LV values.
Optional hFE connector
"HFE-5" is necessary.





FEATURES :
Meter structure Pivot meter
Zero center function ●
Range selection Manual
Output terminal ●
Bandwidth 40Hz ~ 30kHz (less than 10V : ±3%)
30Hz ~ 100kHz (less than 10V : ±1dB)




GENERAL SPECIFICATION :
Accuracy temperature 23 °C ± 2 °C 45 ~ 75% RH Max.
No condensation
Operating temperature 0 °C ~ 40 °C 45 ~ 75% RH Max.
No condensation
Power supply R6 ( IEC ) x 2, 6F22 x 1
Fuse protection 0.5A/250V 5.2mm x 20mm
Dimension 150(H) x 100(W) x 37(D) mm
Weight Approx. 290g
